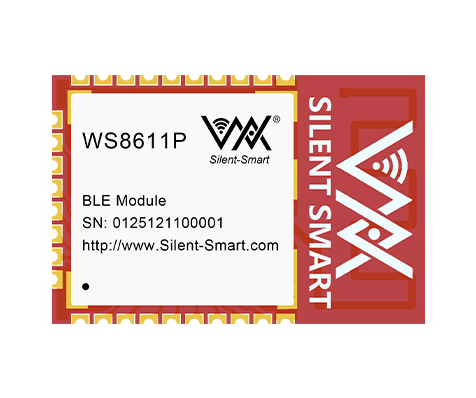

WS8611P uses the NORDIC nRF52832 chip solution. The nRF52832 is a multi-function Bluetooth 5.3 SoC that supports Bluetooth low energy, Bluetooth mesh, and NFC. It supports multiple protocols and has full protocol concurrency, including high-speed 2Mbps capabilities. Bluetooth mesh can run simultaneously with Bluetooth LE, enabling smartphones to provision, debug, configure, and control mesh nodes. It also supports NFC, ANT, and 2.4 GHz proprietary protocols.
The measured communication distance can reach 100m
Support Bluetooth 5.3, Bluetooth mesh, NFC
64 MHz Cortex-M4 with FPU
512/256 KB Flash, 64/32 KB RAM
Support airspeed 1 Mbps, 2 Mbps
Global license-free ISM 2.4GHz band
With UART, SPI, TWI, PDM, I2S, PWM, 12-bit ADC NFC-A and other rich peripherals
Onboard 32.768kHz clock crystal oscillator
Supply voltage 1.7V ~ 3.6V
Industrial standard design, support -40℃ ~ 85℃ long-term use
