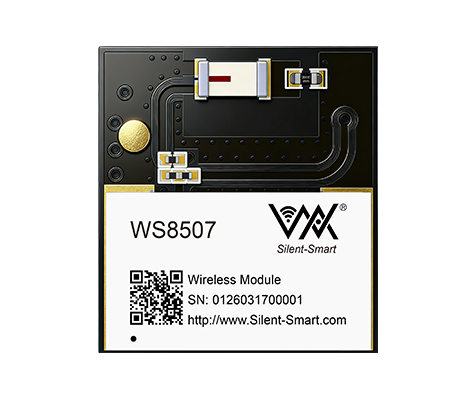

The WS8507 is a 2.4GHz SOC module based on the Silicon Labs EFR32MG21A020F1024IM32-B chip.This module features a built-in 32-bit ARM® Cortex® - M33 core and supports 1024kB FLASH and 96kB RAM.
The WS8507 supports ZigBee,OpenThread,Bluetooth 5.1 and Bluetooth . Mesh and multi - protocol (ZigBee + Bluetooth 5.1 ) support with a maximum transmit power of 20dBm; compact design with a package size compatible with Silicon. The Labs MGM 210 P is easy for users to integrate and develop, and can be widely used in various wireless communication fields of the Internet of Things.
32-bit ARM® Cortex® - M33 core, maximum operating frequency 80MHz
Supports 1024kB FLASH and 96kB RAM
Supports frequency bands from 2400MHz to 2483.5MHz.
Suppors ZigBee , OpenThread , Bluetooth5.1 , Bluetooth Mesh, Multi - protocol (ZigBee + Bluetooth 5.1 )
The maximum transmit power can reach 20 dBm ( 100 mW).
Wide operating voltage range: 1.71 V ~ 3.8 V
Industrial-grade standard design, supports long-term use from -40℃ to 85 ℃.
Choose between onboard ceramic antenna and external solder pads.
Internally integrated 32.768kHz crystal
The compact design and MGM21P package size facilitate user integration and development.
