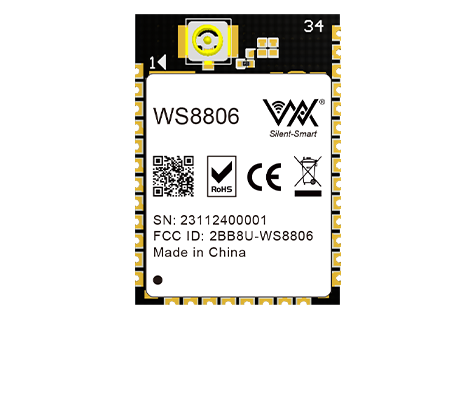

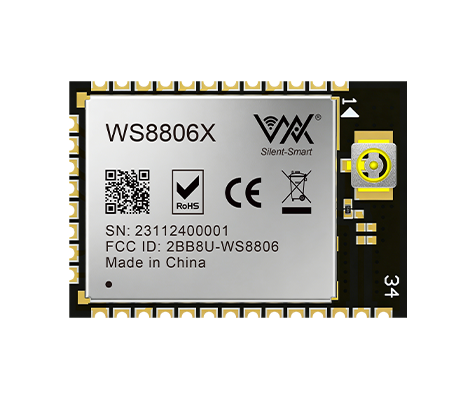

WS8806 is a Zigbee 3.0 module designed based on Silicon Labs' SOC chip EFR32MG21, while the module supports A11 protocol for oil field applications.
WS8806 maximum transmit power up to 20dBm, small size design, hardware and software compatible with Digi XBee 3, easy for users to integrate, has been widely used in oil, photovoltaic and other IoT wireless communication field.
The module is rich in resources, built-in 32-bit ARM®Cortex®-M33 core, supports 1024kB FLASH, 96kB RAM, customers can secondary development.
Supports zigbee 3.0 network protocols
Supports A11 protocol for oilfield applications
Supports switching of node types such as coordinator, routing, terminal, etc.
High performance, hardware and software compatible with Digi XBee 3.
Supports multiple network topologies, such as tree, star and mesh networks.
Support ultra-low power consumption
Support multiple security encryption
Support long serial packet transmission, the longest support 1K serial packet transmission
Dual RF interface options, stamp hole + IPX
