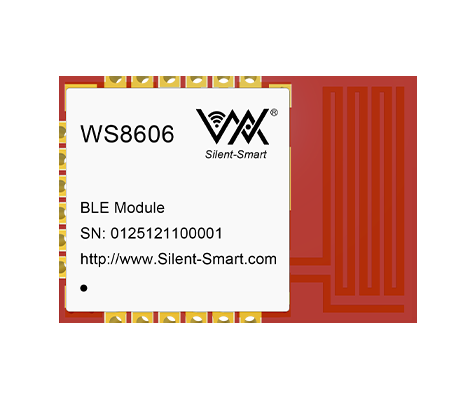

WS8606P is based on DA14531 BLE5.0 ultra-low power serial to BLE Bluetooth master-slave module, working in the 2.4GHz band, with the advantages of small size and low power consumption.
WS8606P comes with firmware from the factory, the module uses common AT commands to configure parameters, easy and convenient to operate, the module supports Bluetooth host, slave and observer modes, etc., and functionally supports a variety of parameter configurations, low-power broadcasting, data transmitting, over-the-air configurations, etc., which is widely used in intelligent home appliances, building automation, wireless sensor nodes, industrial remote control, telemetry and other fields.
Support Bluetooth BLE5.0 protocol
Supports configuration and pass-through modes of operation
Support Bluetooth long packet, power on automatic broadcast connection
Supports switching between IBeacon and normal broadcasting
Supports binding MAC connection, up to 3 devices can be connected.
Support serial port transparent and format transmission
Supports serial port wake-up
Supports multi-master and multi-slave, maximum data connection can be connected to 2 slaves.
Support over-the-air configuration parameter function
Support multi-parameter modification, such as channel, power, baud rate, etc.
Self-contained on-board PCB, self-shielding, maximum possible space saving
On-board PCB antenna, 14.5mm x 10mm ultra-small size
Communication distance up to 60m
