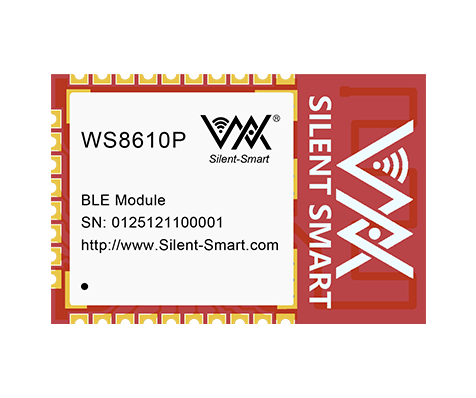

WS8610P is based on TI CC2340R5 solution, mainly for Bluetooth® 5.3 Low Energy, Zigbee®, IEEE 802.15.4 and proprietary 2.4 GHz applications. The chip has an ultra-low standby current of 0.7uA, RTC operation and full RAM retention function, which can significantly extend battery life, especially for applications with long sleep intervals.
CC2340R5 is part of the SimpleLink™ MCU platform, which consists of Wi-Fi®, low-power Bluetooth, Thread, Zigbee, sub-1GHz MCU and host MCU, all of which share a common development environment with a single-core software development kit (SDK) and a rich tool set.
WS8610P adopts automotive-grade design, which is more stable and reliable.
The measured communication distance can reach 120m
Automotive-grade design, supports long-term use at -40℃~85℃
Bluetooth® 5.3 Low Energy, Zigbee®, IEEE 802.15.4 and proprietary 2.4 GHz applications
512KB Flash, 12KB ROM, 36KB SRAM
Powerful 48-MHz Arm® Cortex®-M0 processor
Support low-power wireless upgrade (OTA)
Rich peripheral functions: 3x16-bit+1x24-bit general-purpose timers, 12-bit ADC, low-power comparator, UART, SPI, I2C, RTC
12-bit ADC, 1.2Mbps external reference, 260 kbps internal reference, 12 external ADC inputs
Integrated temperature and battery monitor, AES 128-bit encryption accelerator
Supply voltage 2.2V~3.8V
