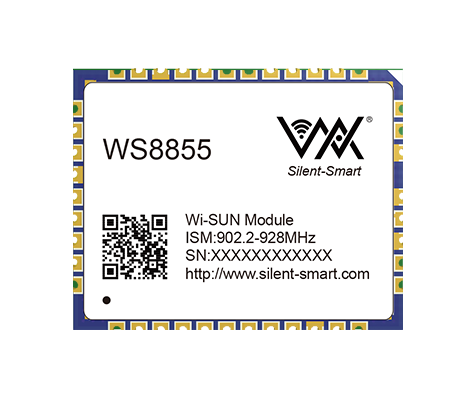

WS8855FLS is an 863-928MHz hardware Wi-SUN module developed by Chengdu Silent Smart Technology Co., Ltd. with a maximum transmit power of 16dBm. The module adopts SILICON LABS EFR32FG25 high-performance RF chip, which supports Wi-SUN MR OFDM MCS 0-6 (all 4 options), 802.15.4 SUN MR O-QPSK and DSSS, Wi-SUN FSK, 2 (G)FSK and (G)MSK multi-protocols, and Wi-SUN FSK, 2 (G)FSK and 2 (G)MSK multi-protocols. Wi-SUN FSK, 2 (G)FSK and (G)MSK multi-protocols.
The WS8855FLS serial Wi-SUN module includes two modes: border router and router. The module has self-organizing function, multiple Wi-SUN networks in the same area, node replacement function, network topology acquisition and auto-routing function, remote configuration function, multicast transmission function, and TCP/UDP transmission function to meet the needs of various application scenarios. Various application scenarios to meet the needs of a strong flexibility and a wide range of applications.
Supports wide range frequency band 863-928MHz
Supports 1000 node network
Supports high air rates up to 2.4Mbps
Supports Wi-SUN FAN1.0 and FAN1.1 protocol stacks
Supports up to 16dBm output power, multi-level power adjustable
Supports multi-channel frequency hopping transmission
Supports bi-directional communication between repeaters and terminals to establish a mesh network.
Supports multi hop networking between repeaters (repeater function)
Support serial command parameter configuration
Antenna interface stamp hole (50Ω impedance)
Small size 19mm x 15mm x 2.8mm
