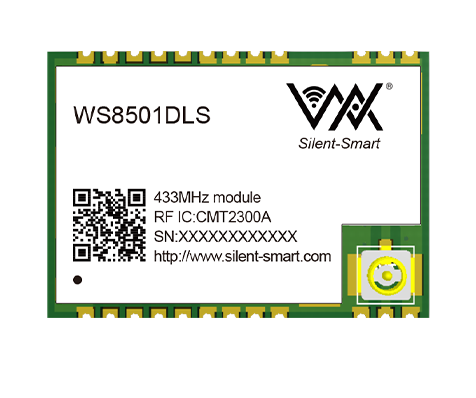

WS8501DLS is a wireless RF transceiver module designed based on HOPERF' RF chip CMT2300A with SPI interface and maximum transmit power of 20dBm.
The module features ultra-low power consumption, long range, supports high-speed transmission, and has a very small size and high stability, which can be widely used in various wireless communication fields of Internet of Things.
Supports a wide range of frequency bands, covering the 433MHz license-free band
Supports high air rates up to 300kbps
Supports GFSK, FSK, GMSK, MSK, OOK modulation modes
Dual RF interface optional, U.LF connector or stamp hole
3-wire SPI communication interface
